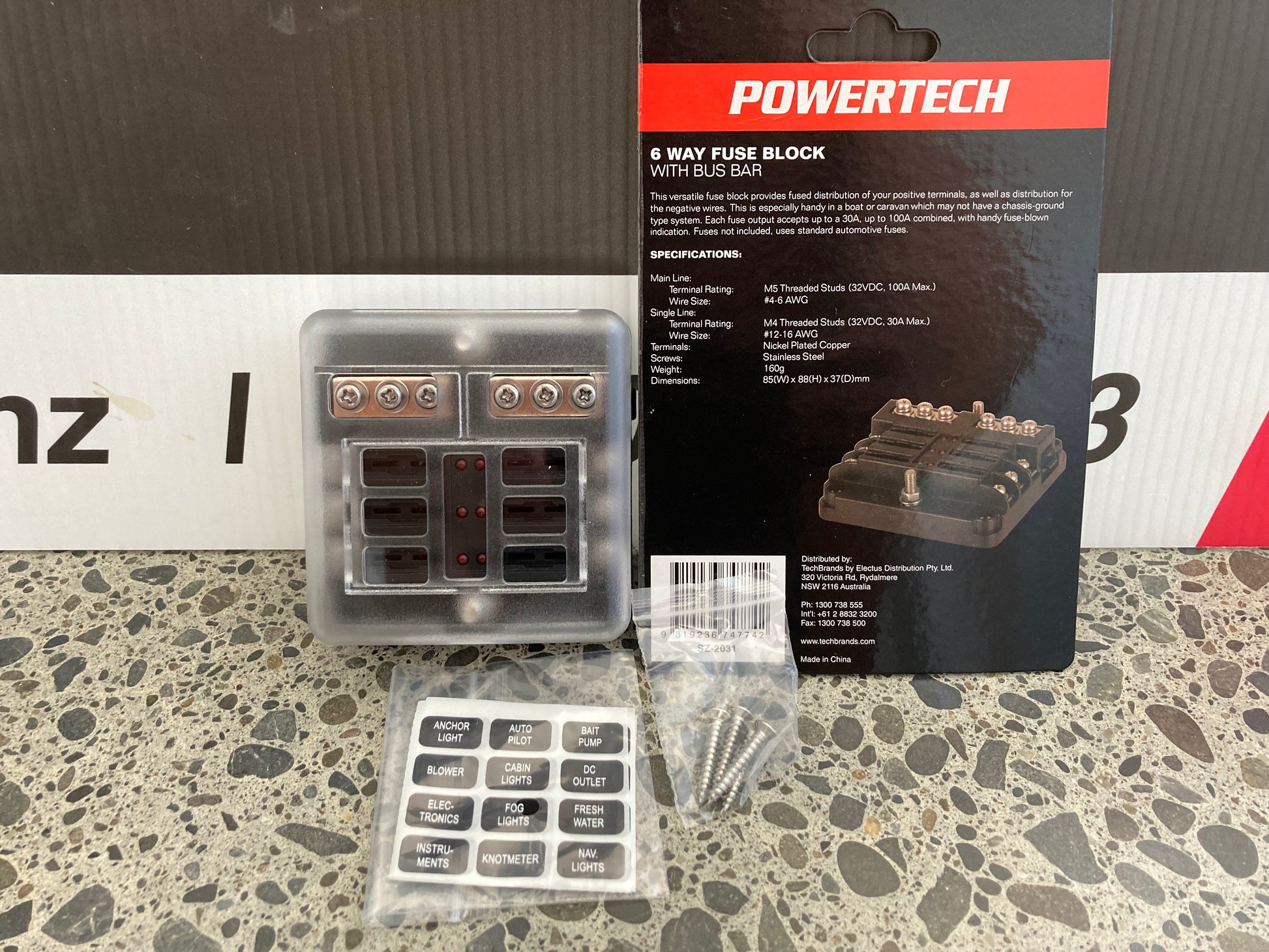

6Way Fuse Block with Bus Bar
6Way Fuse Block with Bus Bar
Regular price
$50.00
Regular price
Sale price
$50.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Free Standard Delivery or $5 Rural Delivery.
This unit is especially handy in a boat or caravan which may not have a chassis-ground type system. Each fuse output accepts up to a 30 amps, up to 100 amps combined, with handy fuse-blown indication. Fuses not included, uses standard automotive fuses.
Features:
Up to 30A per output
Red LED blown fuse indication
Negative bus bar

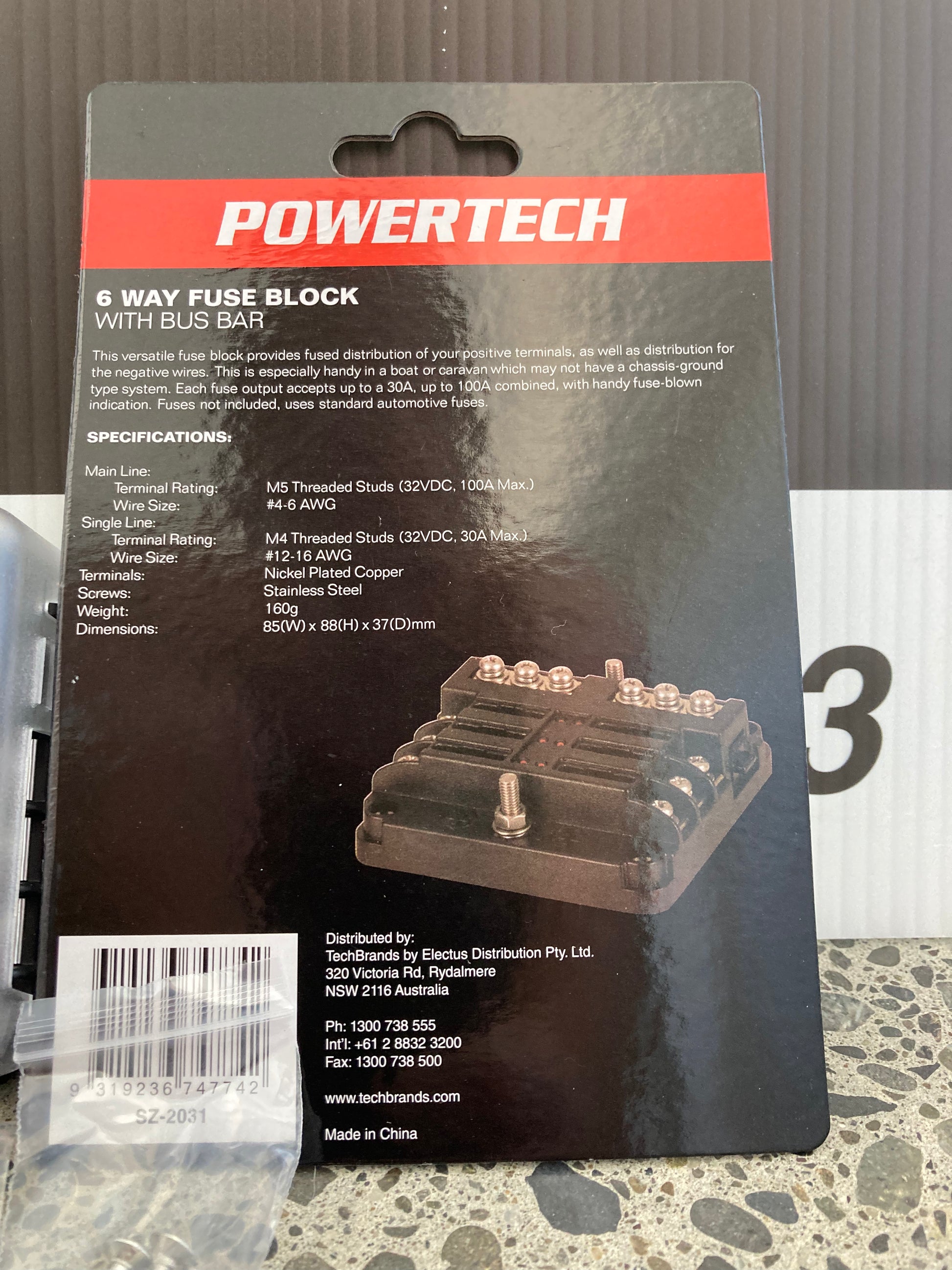

Specifications:
Main Input Line:
Terminal Rating: M5 Threaded Studs (32VDC, 100A maximum)
Wire Size: 4-6 AWG
Single Output Line:
Terminal Rating: M4 Threaded Studs (32VDC, 30A maximum)
Wire Size: 12-16 AWG
Terminals: Nickel Plated Copper
Screws: Stainless Steel
