DRIVETECH4X4 DTSB120 120W FOLDABLE SOLAR BLANKET

  • Sale
  • Regular price $300.00
Tax included. Shipping calculated at checkout.


Price includes free standard delivery or $5 rural delivery.

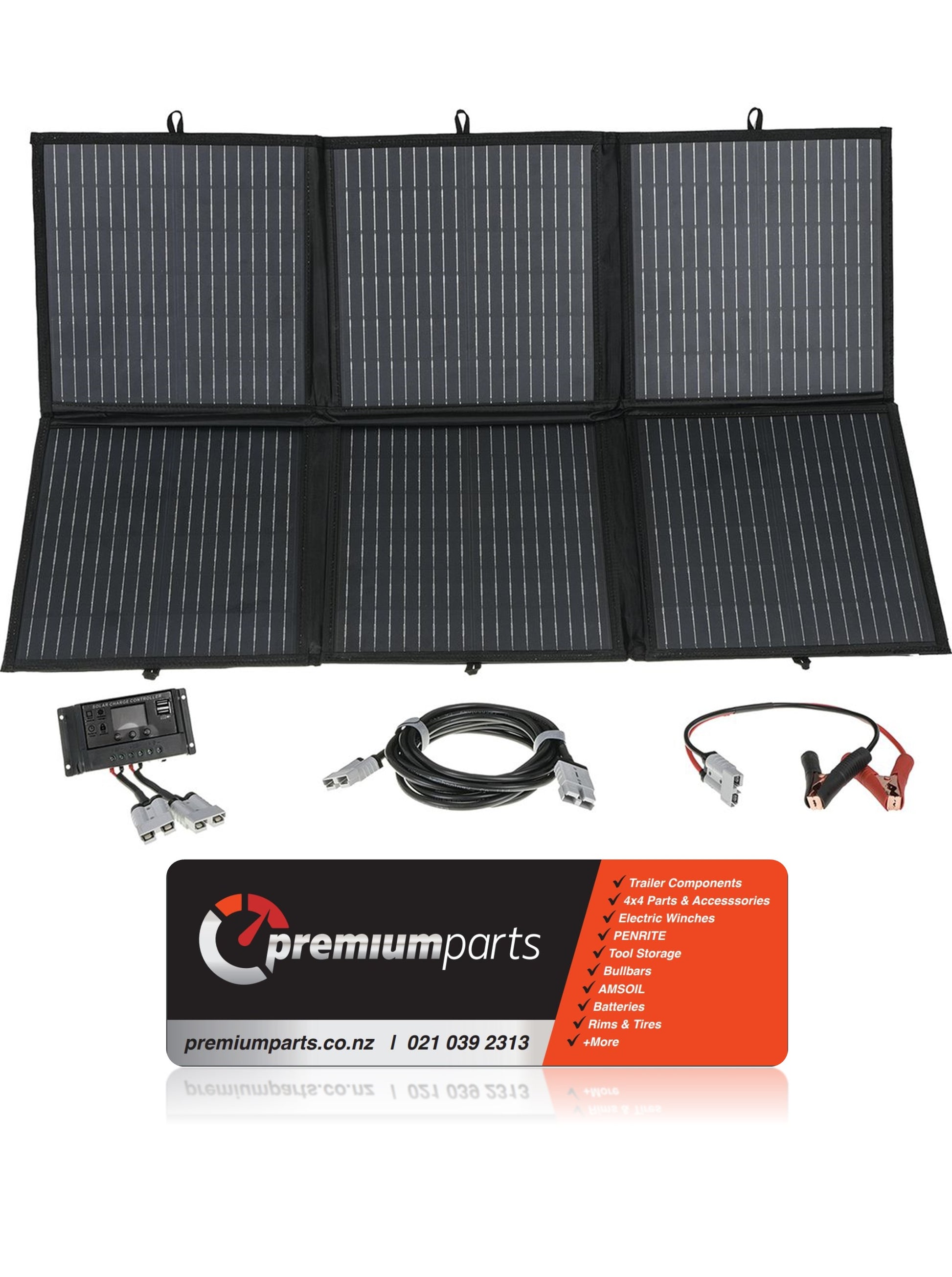

120W Foldable Solar Blanket - DTSB120

Details:
- Monocrystalline
- PWM regulator
- Open measurements 1100 x 700 x 5mm
- Closed measurements 360 x 360 x 70mm
- Open circuit voltage 22.1V
- Short Circuit current 7.35A
- Portable, compact and lightweight, the 120W Foldable Solar Blanket is the perfect way to charge your batteries allowing you to power your fridge, lights and mobile devices

Specifications:
- Part Number: DTSB120
- Rated Maximum Power (PM): 120W
- Voltage at Pmax VMP: 18.5V
- Current at Pmax IMP: 6.49A
- Open-Circuit Voltage VOC: 22.3V
- Short-Circuit Current ISC: 7.35A
- Maximum Series Fuse Rating: 15A
- Dimensions (Open): 1100x700x5mm (HxWxD)
- Dimensions (Closed): 360x360x70mm (HxWxD)
- Solar Cell Type: Monocrystalline
- Tolerance: ± 3%
- Normal Operating Cell Temp (NOCT): 47 ± 2°C
- Maximum System Voltage: 1000VDC
- Operating Temperature Solar Blanket: -40°C to +85°C
- Connections: 50A Power Connectors
- Regulator Type: PWM (pulse width modulation)
- Regulator Current Rating: 20A
- Maximum Regulator Voltage Input: 50V
- Float Charge: 13.7V - Default, Adjustable
- Discharge Stop: 10.7V - Default, Adjustable
- Discharge Reconnect: 12.6V - Default, Adjustable
- USB Output: 5V 3A
- Kit Weight Including Panel and Accessories: 5.95kg

More Information:
High quality, lightweight solar panels and solar blankets designed for camping and 4WD off-roading.

Backed by a 12 month guarantee and crafted with high quality, lightweight anddurable materials, you can be sure it will last the distance.
Each panel is manufactured with monocrystalline solar cells which provide better sunlight absorption and more power when compared to traditional polycrystalline panels. Ideal for caravans, camper trailers, boats and 4x4s.
