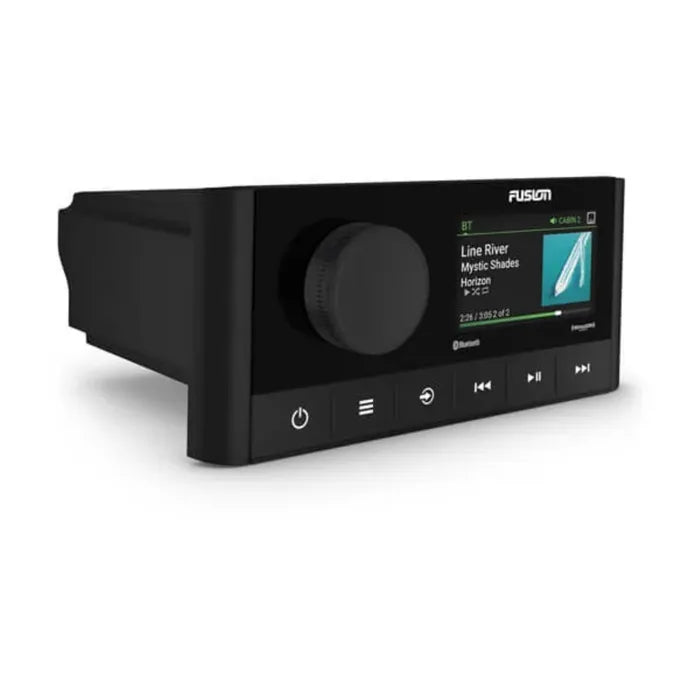

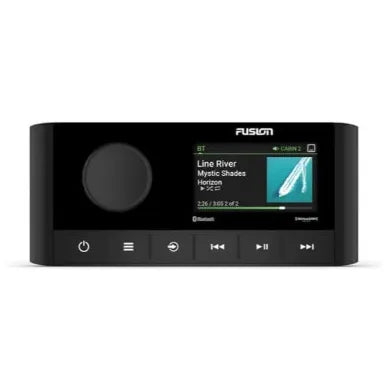

FUSION Marine stereo MS-RA210

INDUSTRY BENCHMARK FOR MARINE ENTERTAINMENT
The MS-RA210 marine stereo from Fusion® is a stylish addition to your boat. Incorporating some of the Apollo™ Series’ key features, the stereo includes built-in digital signal processing (DSP) technology, modern design aesthetics and advanced source options.

• Custom audio profiles for each zone on your boat deliver superior quality audio.
• Enjoy the colour album art and metadata that display information of the current track playing.
• Built-in Class-D amplifier delivers higher efficiency and greater output.
• Multi-Zone™ Technology gives you control of two separate audio zones.
• Control your music from a compatible multifunction display (MFD)1, smart device or Garmin watch.

General
DIMENSION 6.18" x 2.68" x 4.99" (156 x 68 x 126.6 mm)
DISPLAY 2.7" optically bonded color LCD
WEIGHT 0.77 lbs (350 g)
WATER RATING IPX6 and IPX7 (front panel only, when properly installed)
OPERATING TEMPERATURE 32° to 122° F (0° to 50° C)
CURRENT (MAX) 15 A
Networking
NMEA 2000® LEN 1 (50 mA)
BLUETOOTH® WIRELESS RANGE up to 30 ft (10 meters)
ANT® WIRELESS RANGE Up to 10 ft (3 meters)
WIRELESS FREQUENCIES/PROTOCOLS BLUETOOTH®: 2.4 GHz @ +12 dBm nominal
ANT®: 2.4 GHz @ +7 dBm nominal

Audio
AMPLIFIER Class-D (4 ohm)
Stereo Features
PEAK POWER 200 watts
RATED POWER OUTPUT (4 OHM) 26 watts RMS x 4 @ 14.4 V input < 10% THD
BUILT-IN DIGITAL SIGNAL PROCESSING (DSP) yes (with custom DSP profile setup using Fusion-Link™ app)
FUSION-LINK™ CONTROL yes (MFD, smart device and Garmin watch)
MULTI-ZONE™ TECHNOLOGY 2 zones
BLUETOOTH® WIRELESS TECHNOLOGY ?
ANT® WIRELESS TECHNOLOGY ?
SIRIUSXM-READY ?
DAB+ READY ?
SUPPORTS NRX WIRED REMOTE ?
MULTI-LANGUAGE INTERFACE
Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Portuguese-Portugal, Slovenian, Spanish, Swedish, Thai, Turkish
SOFTWARE UPDATES USB
WARRANTY 1 year

Sources
SUPPORTED SOURCES
AM, FM, BLUETOOTH®, USB audio, iPhone®, iPod®, AUX x1, MTP
SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner)
DAB+ ready (available in Europe and Australia only)

Connections
AUXILIARY INPUTS (RCA) 1
NMEA 2000® PORTS 1
USB 2.0 PORTS 1
SIRIUSXM PORTS 1
AM/FM PORTS (MOTOROLA ANTENNA CONNECTOR) 1
SPEAKER CONNECTIONS 4 (2 zone amplified)
RCA PRE-OUT (LEFT, RIGHT AND SUBWOOFER) 2 zones (requires external amplification)
LINE OUT 2 (L + R per zone, requires external amplification)
SUBWOOFER OUT 2 (1 mono output per zone, requires external amplification)

Electrical features
POWER INPUT 10.8 - 16 VDC
COMPASS SAFE DISTANCE 5.9" (150 mm)
