Hydraulic Tipping Kit 5 Tonne

Hydraulic Tipping Kit 5 Tonne

Regular price $4,600.00
Regular price Sale price $4,600.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Perfect for operators who need clear visibility of the tipping location, this tipping kit comes with wired and wireless controls.

This 5t tipping kit is suitable for light commercial trailers up to 3.5t GVM.

Features

  • Wired umbilical controller
  • 2 x wireless key fob controls
  • Hardened chromed tubes
  • Easy to service
  • Steel stop faces
  • Displacement cylinder
  • Polyurethane high pressure seals
  • Operating pressure of 160 bar, 2300psi
  • Wiper-scraper seals

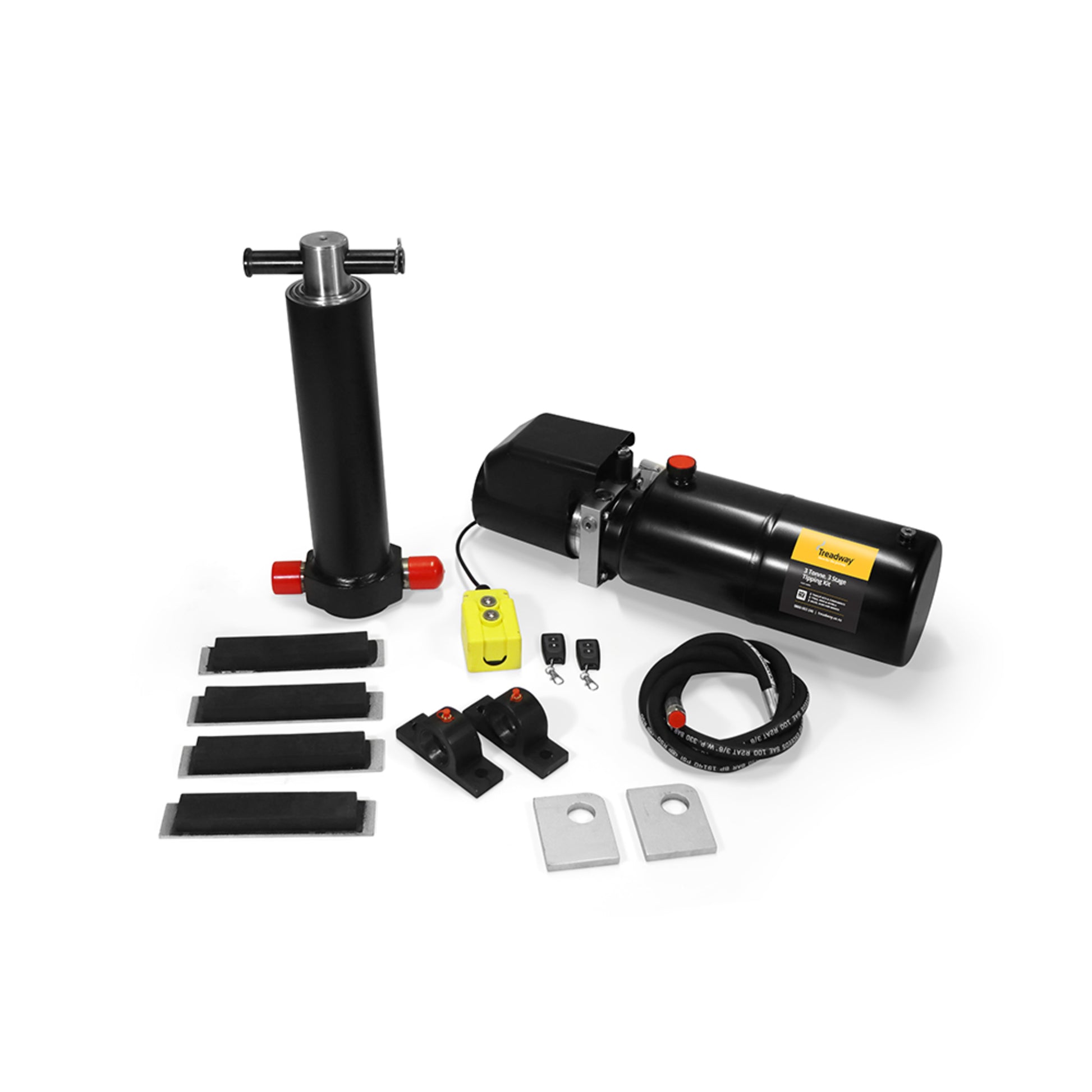

Kit contents

  • Power Pack DC12V, 2.2KW, 2.7CC/R
  • Wired controller
  • 2 x wireless remote controllers
  • 3 stage ram, 5000kg capacity, 1050mm stroke length, bottom trunnion mount
  • 2 x galvanized deck pads
  • Top pin kit for ram
  • Ram support bracket
  • 2 x Top mounts for ram

Specifications

  • Load capacity: 5000kg
  • Operating pressure: 160 bar, 2300psi
  • Stroke length: 1050mm
  • Oil tank: 10L
  • Cylinder dimensions: 96mm, 80mm, 65mm
  • Rod dimensions: 92mm, 75mm, 60mm


Pivot Distance Tipping Angles
3T tipping kit 5T tipping kit 8T tipping kit
900mm 52°
1000mm 47°
1100mm 43° 57°
1200mm 52°
1300mm 48°
1400mm 44° 63°
1500mm 41° 59°
1600mm 55°
1700mm 52°
1800mm 49°
1900mm 46°
2000mm 44°
2100mm 42°

Pivot Distance: The distance between the deck hinge and trunion mounting
NB: All measurements are approximate and designed as an approximate guide only
