SKU: TB270014

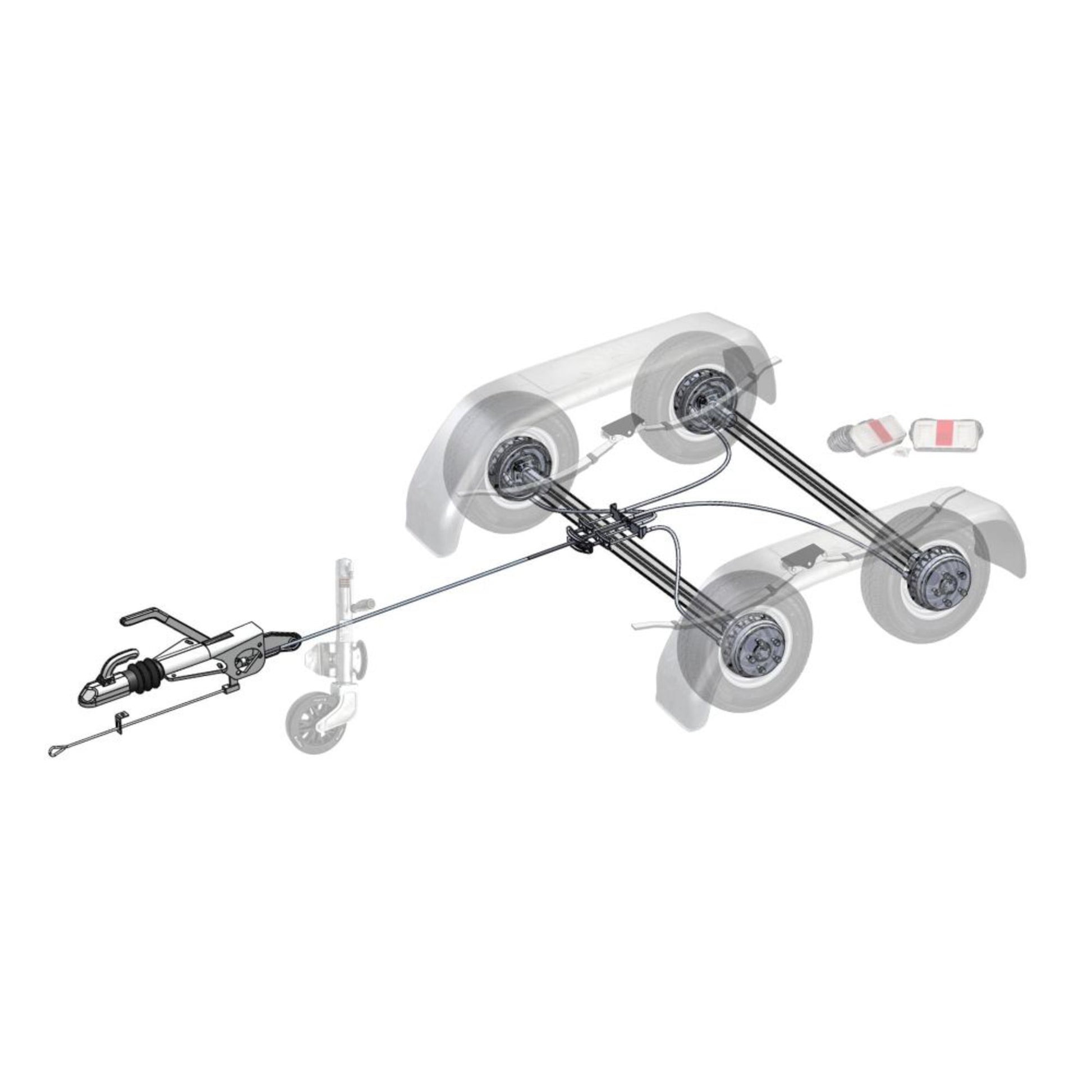

All the key components for manufacturing a sprung tandem axle trailer with drum brakes for road use. Suitable for loads of up to 2700kg GVM*.
Comes with inertia controlled braking system that removes the need to get out of the cab and adjust the trailer before reversing. Add corner steadies for extra stability when parked.
- Delivered in one package ready for use
- EASY HUB no mess low maintenance bearing system Smooth braking performance
- No electrics or batteries required
Kit contains
- 4x Assembled Wheel 14x6" Galv 5x4.5" (10mmOS) PCD Rim 185R14C 8ply Tyre W312
- 1x Spring Set 3000kg Tandem
- 4x Leaf Dacromet Eye/Slipper
- 1x Coupling 1-7/8" KNOTT Override Braked 2700kg
- 1x KNOTT Jockey Wheel Assy Sidewind 8" 545kg Galv
- 1x Pair Galvanised Mudguards 200x1500mm Tandem Square
- 1x LED Trailer Tail Light Kit Multi Volt 9m Cable
- 1x Pair LED Trailer Lighting Sidemarker Lights Amber
- 1x Brake Cable Holder Tandem to suit KNOTT
- 1x Brake Cable for Rear KNOTT Brakes
- 2x Brake Cable for Front KNOTT Brakes
- 1x Cable Balance Bar for KNOTT Tandem Drum Braked Axles
- 8x U-Bolt 120Lx51W Galv M12 Internal Measurement
- 2x Hub Assy 8" KNOTT Drum Brake 5x4.5" PCD 1350kg 39mm Axle Left
- 2x Hub Assy 8" KNOTT Drum Brake 5x4.5" PCD 1350kg 39mm Axle Right
- 4x Axle Plate to Suit 50mm Axle
Specifications
| Brand: | Knott |
| Load Rating: | 2700kg |
