Trailer Kit 750kg Non-Braked Knott Torsion 195/50R13C 8ply

SKU: TB75013

All the key components you need for manufacturing a light un-braked trailer suitable for loads of up to 750kg GVM.

Simplify your build with a torsion axle, the suspension is built in and the hub set is already fitted. Bolt on to your chassis and move on to the next job. Includes EasyHub sealed bearings for low maintenance peace of mind.

Key Features

• Knott axle torsion suspension 750 kg: Provides superior suspension due to its torsion bar design, which helps minimise wear and tear on both the trailer and the towing vehicle. With built-in suspension and hubs attached for a hassle-free assembly.
• EasyHub bearings: Sealed-for-life car bearings adapted for trailer use eliminate need for regular greasing and tedious upkeep.
• Galvanised rims: Has a spoke design and a standard PCD, compatible with a wide range of trailers.
• Heavy-duty WR068 tyres: With bending grooves and thin sipes designed for low noise and efficient water dispersion. Tyre composition reduces up to 40% rolling resistance to help save fuel and maintain control at high speed.
• Extra durable coupling: Bolt-on coupling rated at 2,000 kg with a rubber-coated handle for a comfortable grip. Made of cast iron material with a Zinctech finish.
• 2,500 kg-rated 11-link safety chain and Nu-D shackle: Provide an extra layer of security by keeping the trailer and the cargo securely fastened to the towing vehicle in case of hitch failure.
• IP67-rated tail lights: Waterproof and dustproof submersible tail lights that can withstand aggressive weather.
• Customisable kit: This kit can be customised on request.

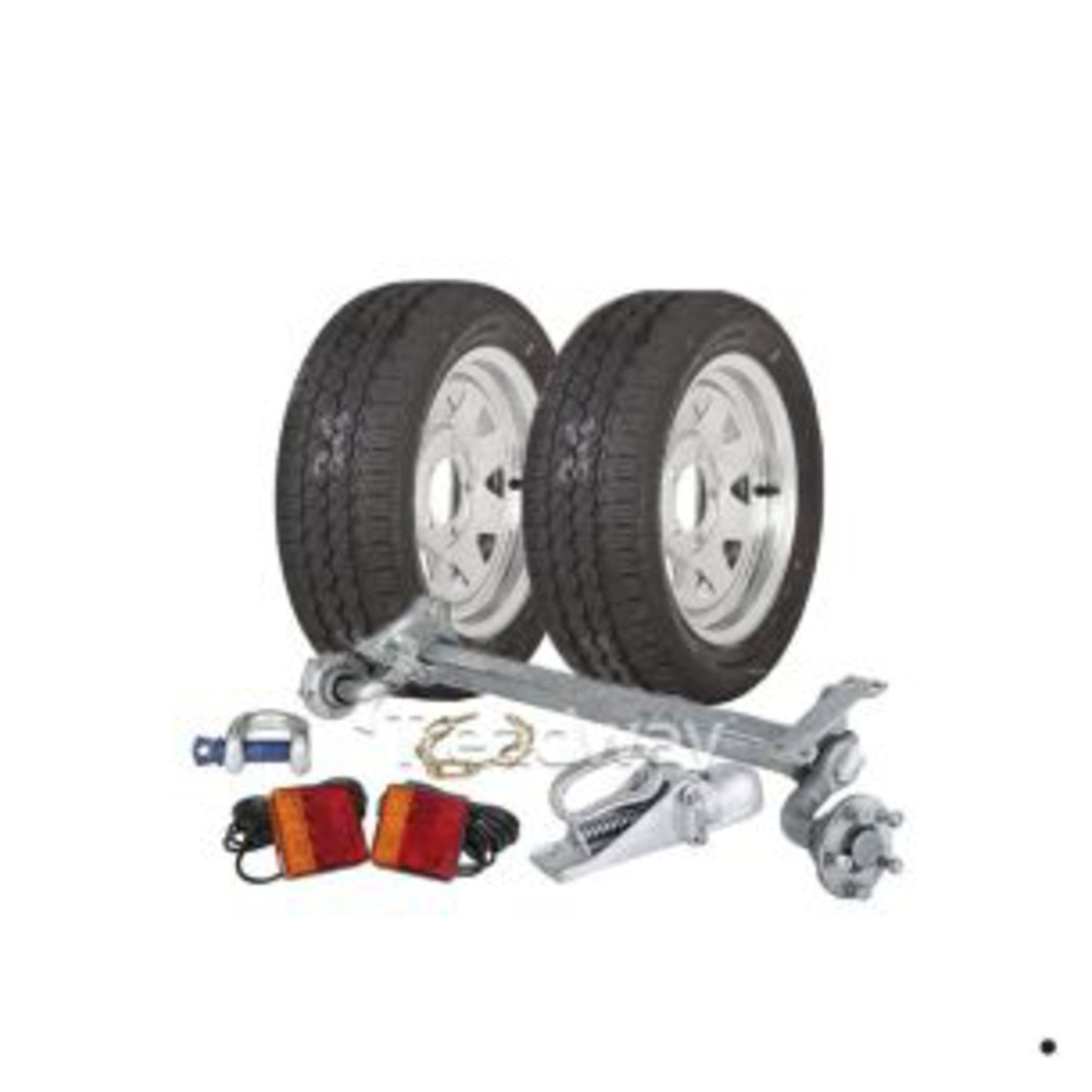

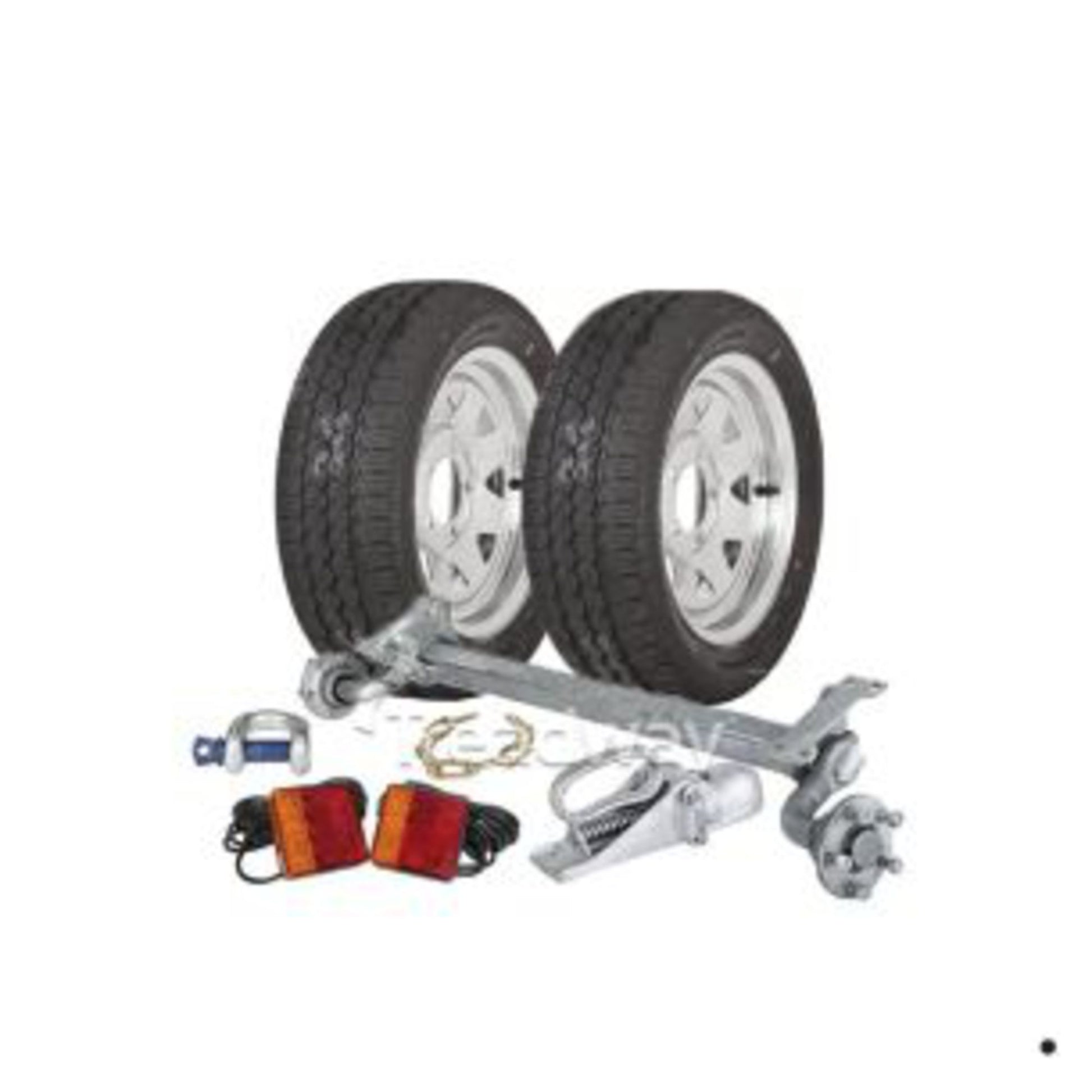

Kit contains

• 2x Assembled Wheels 13x5", Galv spoke 5x4.5" rim, 195/50R13C Tyre
• 1x Safety chain rated 11 links 465mm
• 1x KNOTT Galvanised Torsion Axle with Suspension 5x4.5" PCD with EASY HUB S/S Bearing
• 1x Pair of 100x100mm LED Trailer Tail Light Kit, Multi Volt 9M cable
• 1x Galvanised D-shackle
• 1x Coupling 1-7/8" inch lever 2000kg 4 bolt
