Trailer Kit Tri-Axle 3500kg 14" Wheels 2 axles Braked

All the key components you need for manufacturing a sprung tri-axle trailer with drum brakes for road use. Suitable for a trailer of up to 3500kg GVM.

Includes mechanical override braking system that removes the need to get out of the cab and adjust the trailer before reversing. This trailer kit delivers an execptional braking and towing experience./p>

• Delivered in one package ready for use
• EASY HUB no mess low maintenance bearing system
• Smooth braking performance
• No exemption required
• No electrics or batteries required
• No need to adjust brakes between trailer loads
• Exceptional towing experience

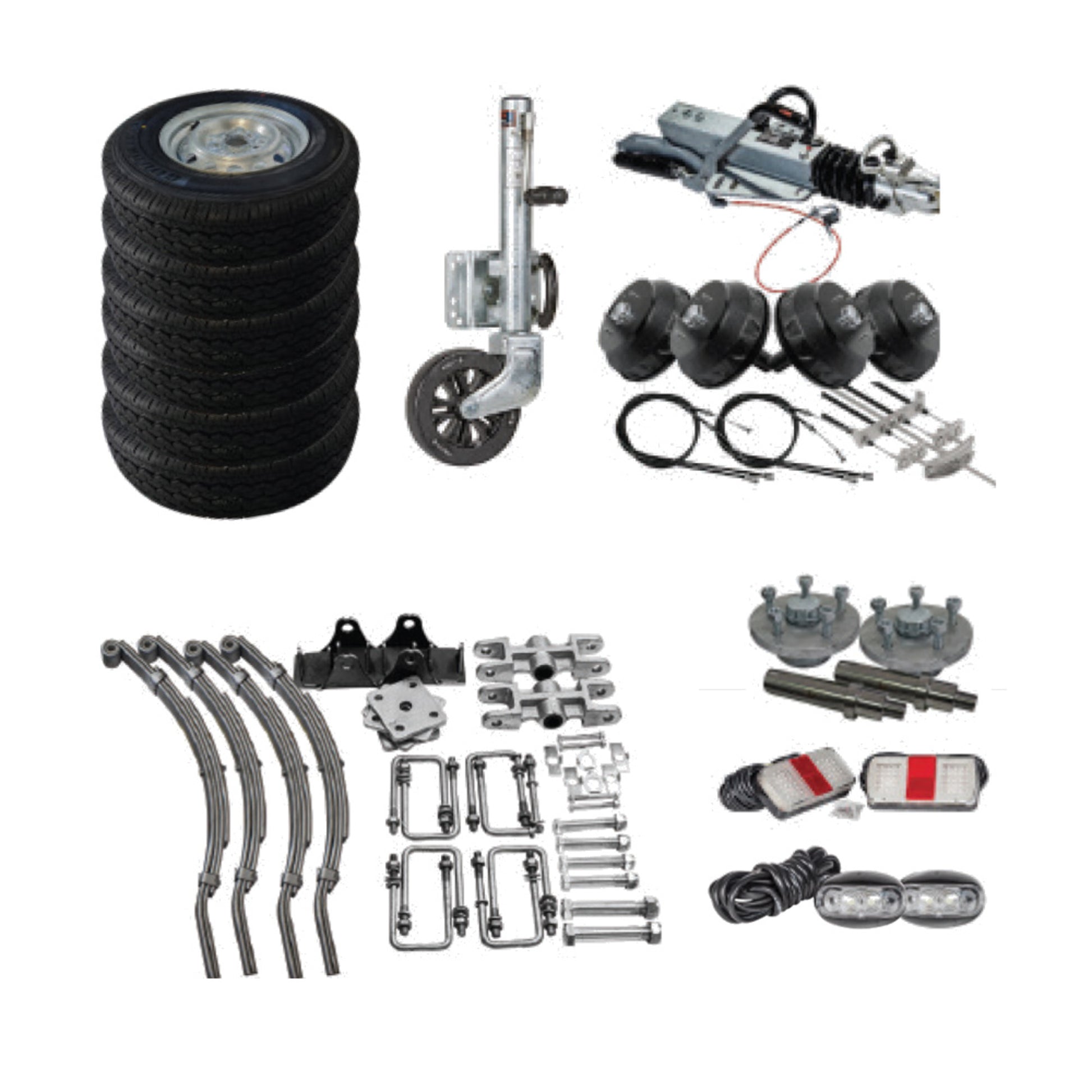

Kit contains

• 6x Wheel 14x5.5" Galv. 35mm Offset 5x4.5" PCD Rim 195R14C 8ply Tyre W312 Westlake
• 1x Spring Set 3500kg 4 Leaf Tri Dacromet Eye/Slipper
• 1x Coupling 1-7/8" Knott overrun Braked 3500KG w/lock
• 1x KNOTT Jockey Wheel Assy 8" Wheel Sidewind 545kg Galv
• 1x KNOTT Hub Set 1800kg EASY HUB 5x4.5" PCD 39mm Axles Compact Bearings
• 1x Trailer Tail light Kit, Pair 156x81mm LED Multi Volt. 9m Cable
• 1x Pair Trailer Lighting Sidemarker Lights Amber LED
• 4x Axle Plate to suit 65mm Axle 8 U-Bolt 145L x 68W M12 suits 65mm Box
• 2x Axle Plate to suit 50mm Axle
• 4x U-Bolt ea 120L x 51W Galv M12
• 8x U-Bolt 145L x 68W M12 suits 65mm Box
• 1x Brake Cable Holder Tandem to Suit KNOTT
• 2x Brake Cable for Front KNOTT brakes for 3.5T kit
• 2x Brake Cable for Rear KNOTT Brakes for 3.5T kit
• 1x Cable Balance Bar for KNOTT Tandem Drum Braked Axles
• 2x Hub Assy 10" KNOTT Drum Brake 55mm Axle Left
• 2x Hub Assy 10" KNOTT Drum Brake 55mm Axle Right

Axle fabrication available on request.
