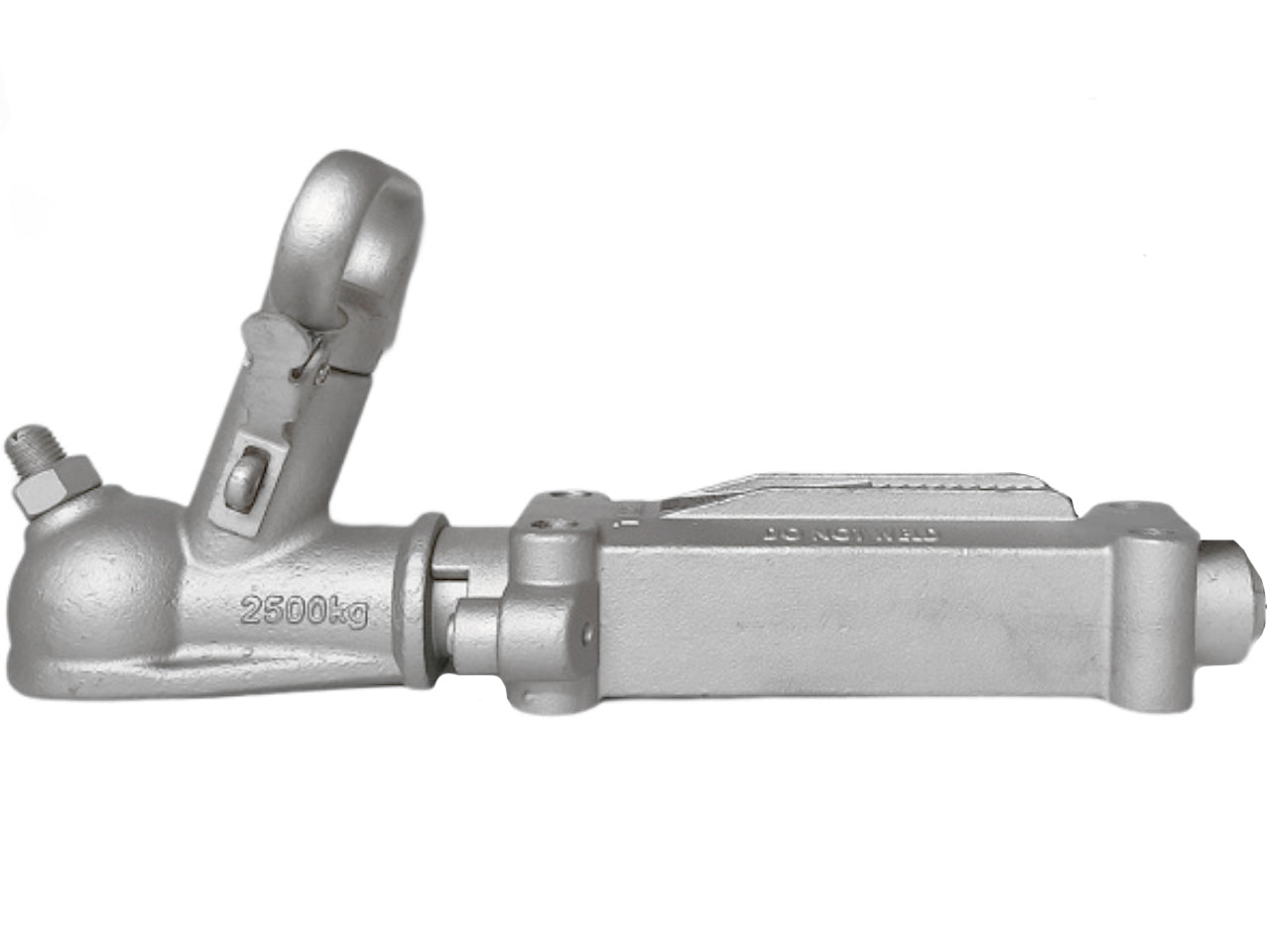

- Body Only (Excludes Backframe and Master Cylinder)
- 4 Holes M12 x 182mm x 54mm
- 2500kg Max Capacity
- 1 7/8" Coupling Head
Trailer Coupling Mounting Plate (see image)
One of NZ’s most common bolt mounting patterns. The mount pattern pictured is measured across bolt centers, Rated to 2500kg max. Mounting by way of four 12mm high tensile bolts is recommended. Complies with Australian Standard AS4177.3 (1994).
| Bolt Size | G 8.8 | G 10.9 |
|---|---|---|
| M10 |
45ft/lb 60Nm | 60ft/lb 80Nm |
| M12 | 75ft/lb 100Nm | 90ft/lb 120Nm |
