Specifications

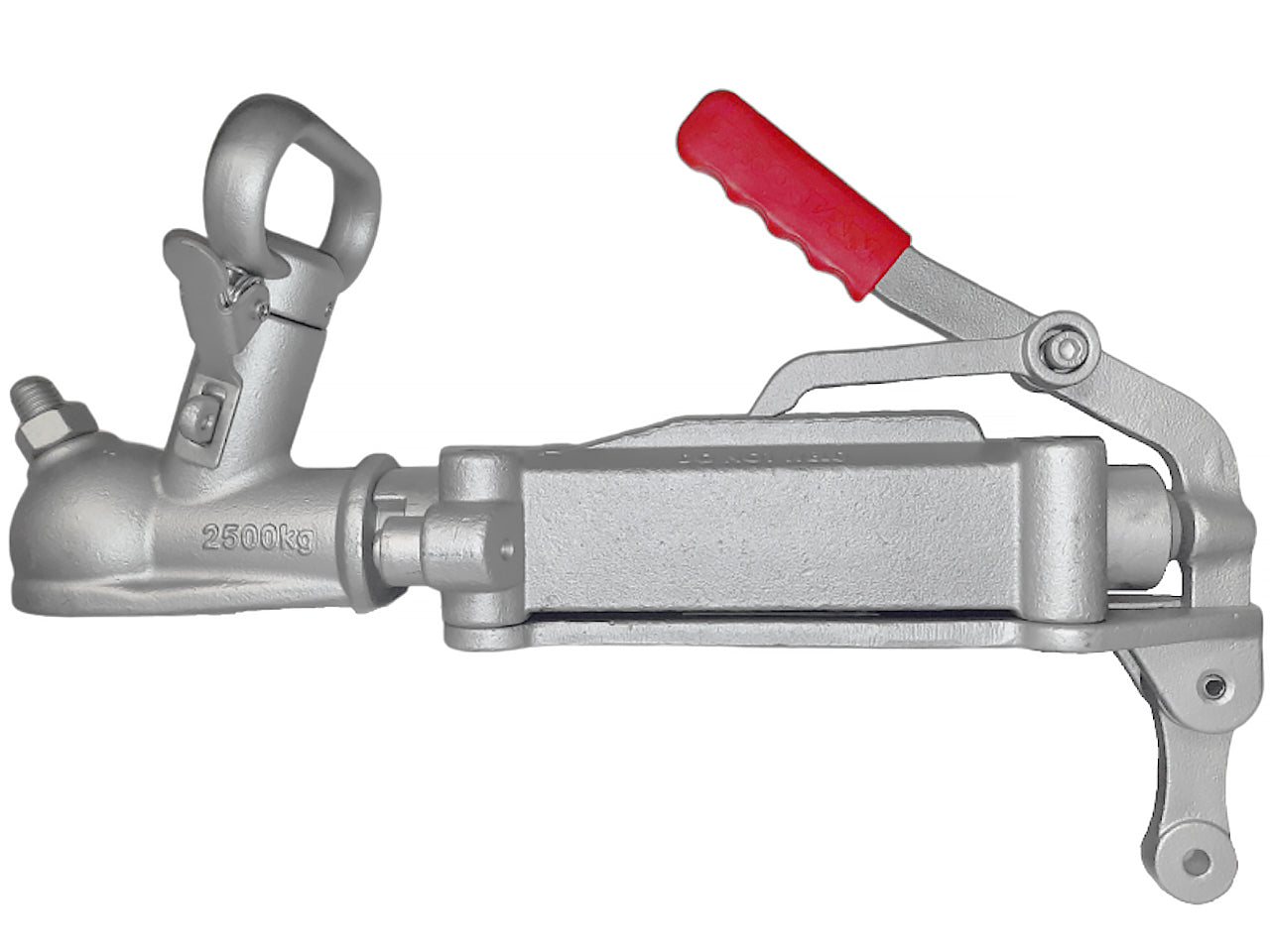

Suits 50mm ball, TC40
One of Nz’s most common bolt mounting patterns. Mount pattern pictured below is measured across bolt centers, Rated to 2500kg max. Mounting by way of four 12mm high tensile bolts is recommended. Complies with Australian Standard AS4177.3 (1994).
| Bolt Size | G 8.8 | G 10.9 |
|---|---|---|
| M10 |
45ft/lb 60Nm | 60ft/lb 80Nm |
| M12 | 75ft/lb 100Nm | 90ft/lb 120Nm |
